4K Surgical Operating Microscope
Product Overview
The 4K camera sits inside the optical path, so the eyepiece view, the theatre display and the recording all carry one image. APO optics resolve the ossicular chain, tympanic membrane, vocal folds and sinus landmarks from 1.5x to 22x, under LED illumination of up to 80,000 lux. Capture, recording and replay run inside the unit, so one operating microscope serves the procedure, the case record and the teaching session.
Product Features

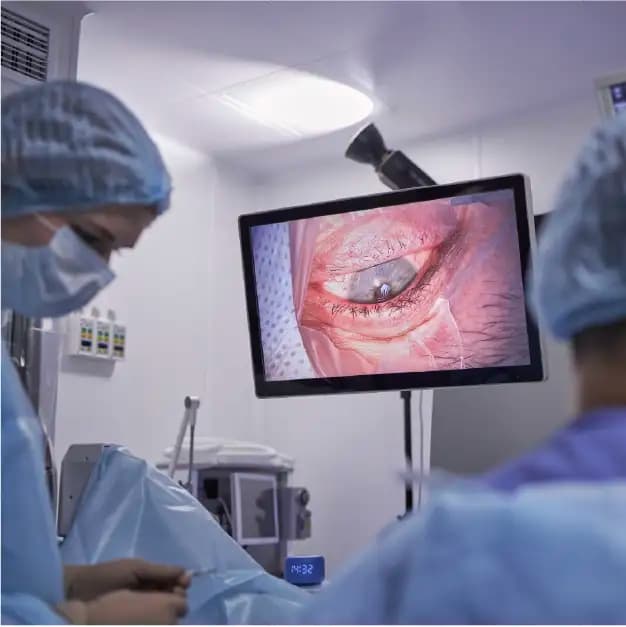

Real-time 4K imaging
The 4K camera is integrated into the optical path rather than bolted on, so the eyepiece view, the theatre display and the recording stay in step with no lag.

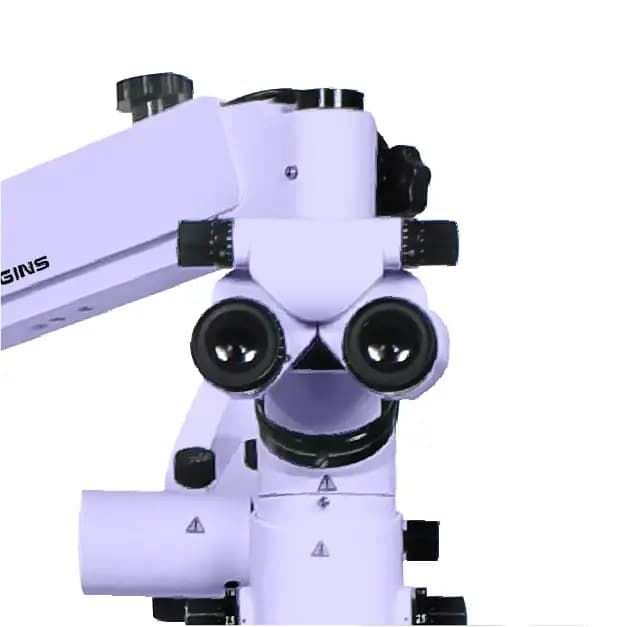

APO optical system
Apochromatic optics hold colour accuracy and edge-to-edge sharpness from 1.5× to 22×. High-intensity LED illumination of up to 80,000 lux keeps deep and narrow fields evenly lit.
Recording and review
A built-in 4K microscope camera captures still images, records video and enables case playback without external capture hardware, supporting case documentation, departmental review and training.

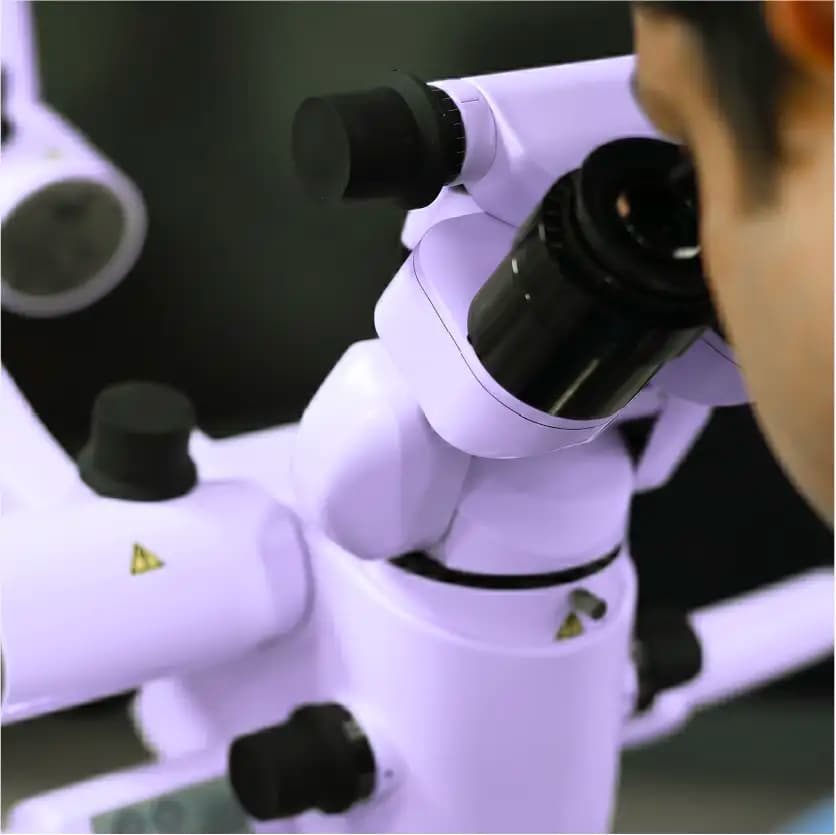

Ergonomic binocular viewing
Interpupillary distance adjusts from 55 to 75 mm with ±6D diopter correction, so every surgeon on the rota sets the microscope to their own eyes.

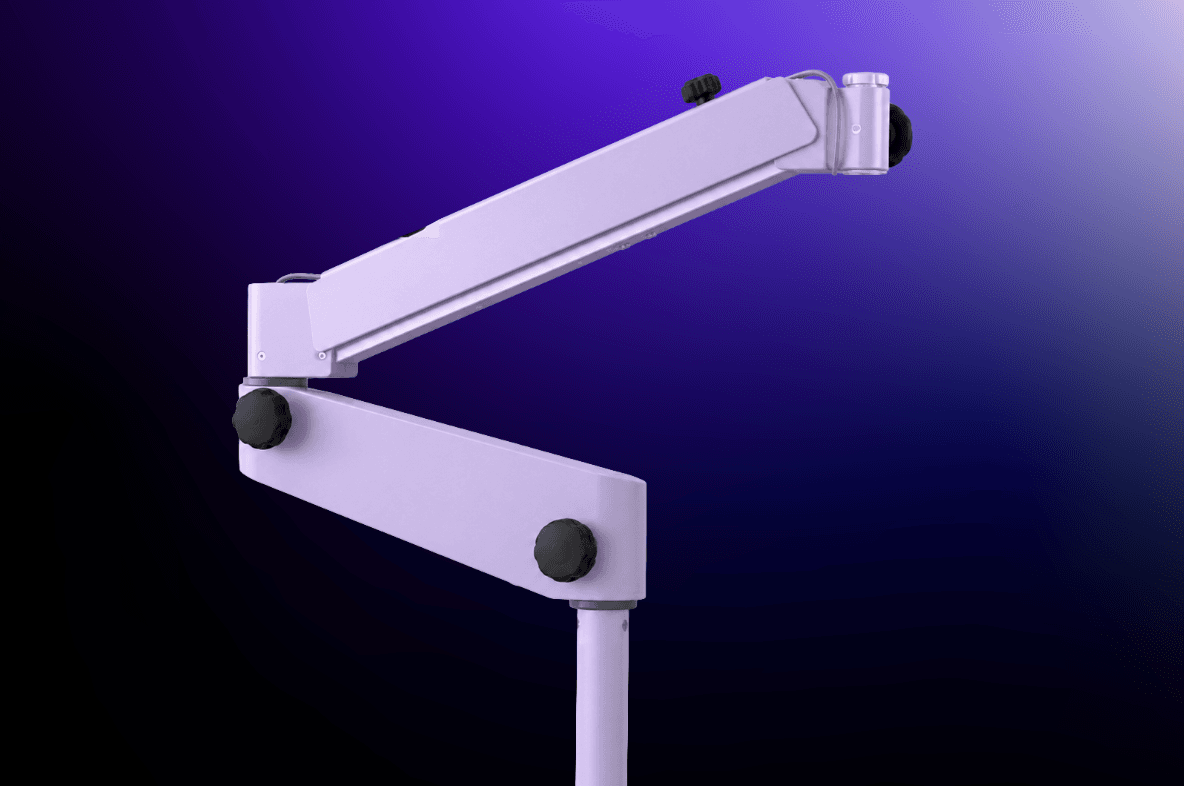

Flexible mounting
Floor, wall and ceiling configurations fit the unit into existing theatre layouts, including rooms where floor space is already committed.

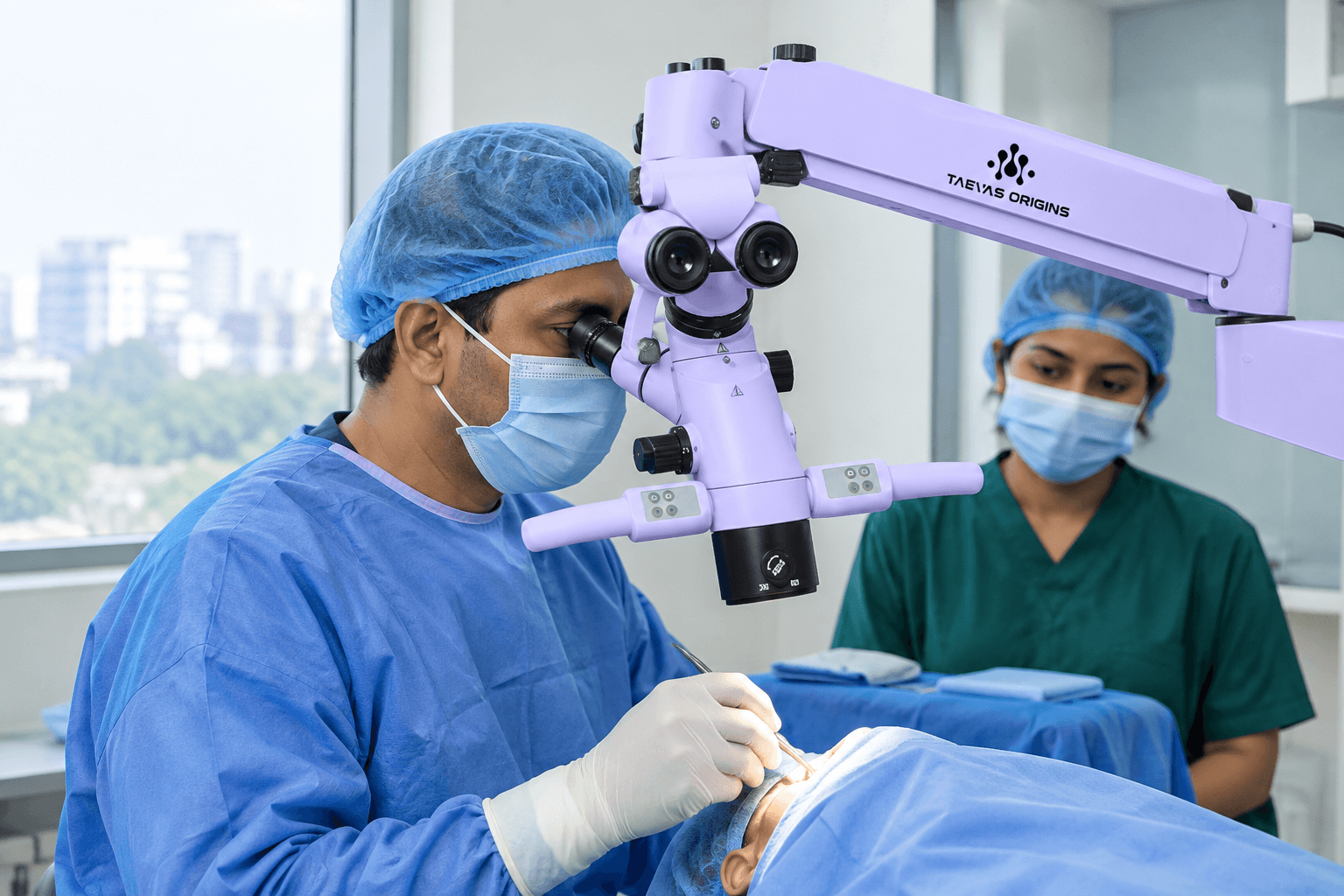

Why Choose This Product?
- 4K surgical microscope for ENT visualization
- Supports ENT microsurgical visualization
- Suitable for ear and sinus procedures
- Integrated imaging and documentation capabilities
- Addresses the high capital cost associated with premium surgical microscopes.
- Local sales, demonstrations, training, and clinical support in Bangladesh
Product Anatomy
The Taevas Origins 4K Surgical Microscope system includes components designed to support surgical visualization, recording, and workflow efficiency:
Provides high-precision magnification and visualization during surgical procedures.
Adjustable binocular tubes allow surgeons to view surgical fields comfortably during long procedures.
Captures and records high-resolution surgical images and videos for documentation and teaching.
High-intensity LED light provides consistent brightness across the surgical field.
Allows surgeons to adjust imaging parameters such as white balance, contrast, brightness, and recording settings.
Available in floor stand, wall mount, or ceiling mount configurations to suit different operating room layouts.
Registration & Compliance
Please contact Taevas regarding applicable requirements for this product.
Applicable regulatory framework: FDA
Clinical Applications
Comparison
| Feature | Traditional Microscope | Taevas Origins 4K Operation Microscope |
|---|---|---|
| Visualization | Direct optical viewing through the microscope | 4K digital surgical visualization supported by APO optics |
| Imaging | Optical viewing with a separate imaging arrangement when required | Integrated 4K imaging for real-time surgical visualization |
| Magnification | Optical magnification adjusted through the microscope | Adjustable magnification for precision across ENT and microsurgical applications |
| Illumination | Microscope-based lighting of the surgical field | High-intensity LED illumination with consistent, color-accurate field lighting |
| Documentation | Separate recording and review workflow | Digital output supporting surgical recording, review, and teaching |
| Viewing System | Conventional binocular optical viewing | Ergonomic binocular viewing designed for long-duration procedures |
| Installation | A fixed mounting arrangement selected for the operating room | Floor, wall, and ceiling mounting options for flexible integration |
| Digital Output | Primarily optical observation | High-resolution digital output compatible with documentation workflows |
